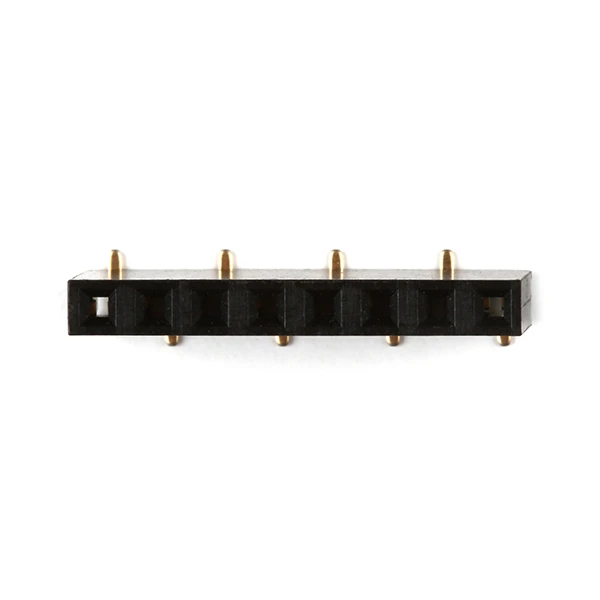

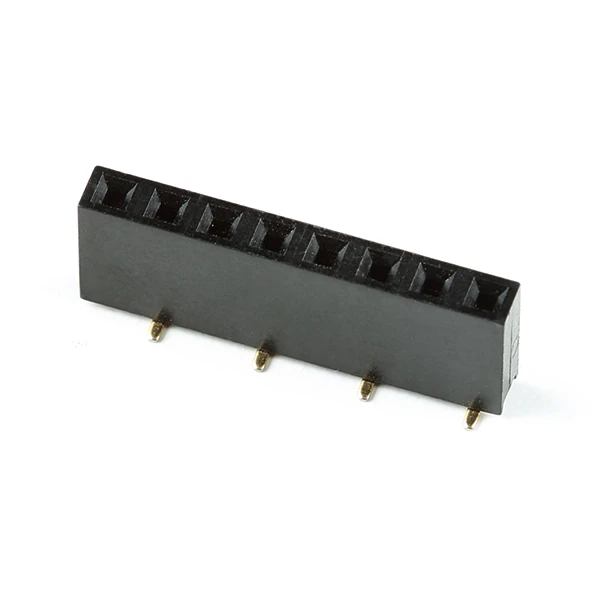

Female Header – 8-pin (SMD, 0.1in)

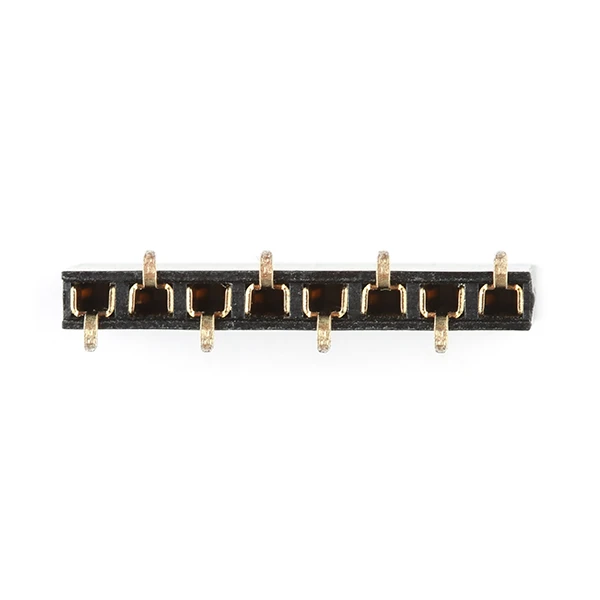

These are standard 0.1″ spaced header pins that can be surface mounted for applications where through-hole pins won’t work. The surface mount side of the legs are staggered for stress relief.

This is a 8-Pin female header.

• Number of Positions: 8
• Number of Positions Loaded: All
• Pitch – Mating: 0.100″ (2.54mm)
• Mounting Type: Surface Mount
• Fastening Type: Push-Pull
• Contact Finish – Mating: Gold
• Contact Finish Thickness – Mating: Flash
• Insulation Color: Black
• Insulation Height: 0.280″ (7.10mm)
• Operating Temperature: -40°C ~ 105°C
• Material Flammability Rating: UL94 V-0
• Contact Finish – Post: Gold
• Current Rating (Amps): 3A
• Voltage Rating: 250V
• Insulation Material: Polyamide (PA6T), Nylon 6T
• Contact Shape: Square
• Contact Material: Phosphor Bronze
• Model #: NPPC081KFXC-RC
