MIKROE IR Sense Click
Original price was: $26.95.$18.87Current price is: $18.87.
- Control the delivery date and try to deliver it in the fastest time
- Safe Transactions, Always
- Experience the Best Quality
- Multiple payment methods, 100% payment security

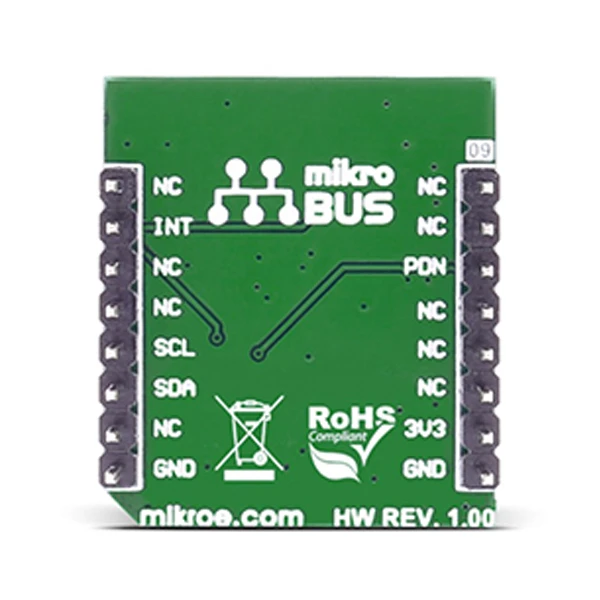

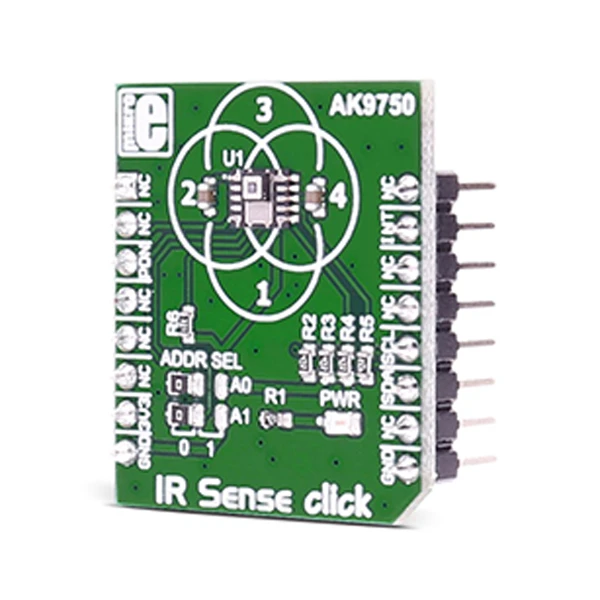

IR Sense Click carries the AK9750 quantum-type IR sensor. The Click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over I2C interface, with additional functionality provided by the INT pin on the mikroBUS™ line.
IR Sense Click detects the temperature of objects and people in motion. It can also detect a human body that remains still. So, it distinguishes heat regardless of the fact whether or not an object is moving.
AK9750 FEATURES
The AK9750 is an ultra-low power and compact infrared-ray (IR) sensor module. It is composed of four quantum IR sensors and an integrated circuit (IC) for characteristic compensation.
An integral analog-to-digital converter provides 16-bits data outputs. Additional integrated features include a field of view limiter and an optical filter.
- Interface: I2C
- Compatibility: mikroBUS™
- Dimensions: 28.6 x 25.4mm
- Input Voltage: 3.3V
